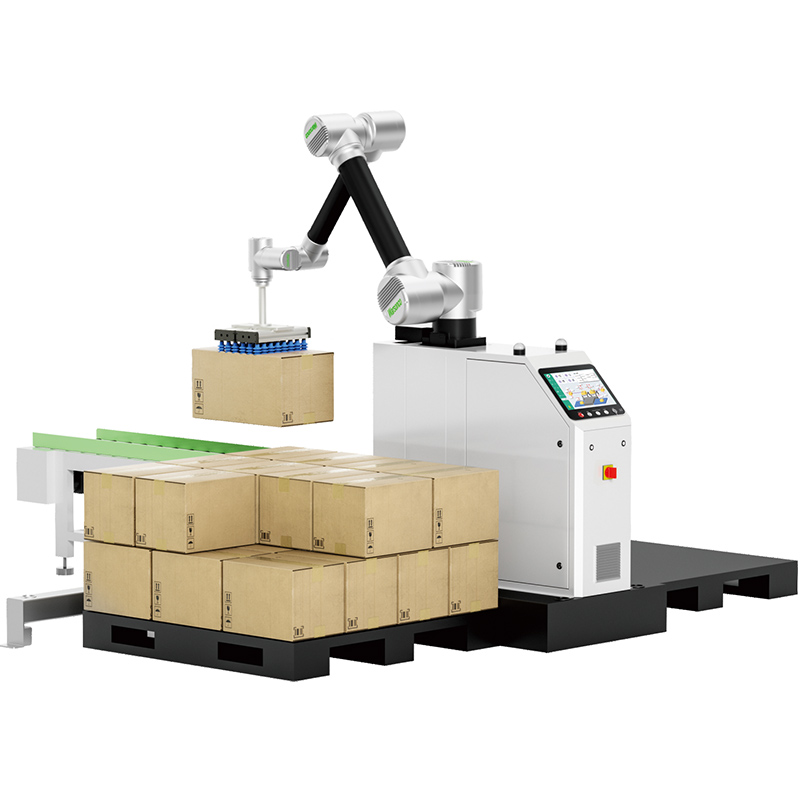

一、Collaborative Robot Palletizing Workstation
1、Composition of Workstation
① Collaborative Robot
② Electrical Cabinet Control System
③ Robot Fixed Axis
④ Base + Pallet Positioning
⑤ End Effector
⑥ Operating System
2、Workflow of Workstation
Preparation → Palletizing Mode Setting → Pallet A Placement → Pallet B Placement → Completion
二、Product Advantages
1、Safety and Stability
(1) High reliability and safety;
(2) Supports level 10 collision detection and sensor safety detection;
(3) Provides 16 safety I/O interfaces, and will not lose safety functions in case of a single failure;
(4) The end effector will not drop when power is off, ensuring product safety;
2、Flexible Deployment
(1) Integrated design, lightweight and flexible, small footprint;
(2) Setting up new tasks for the workstation is simple and fast, with high efficiency;
3、Easy Programming
(1) Programming method can be mastered in half an hour, and simple programming can be completed in one hour;
(2) Visual programming is simple and efficient, allowing easy operation of the robot without mastering programming languages;
4、Flexible Production
Quick switching between multiple functional scenarios, flexible production can be achieved through human-machine collaboration,
dual-machine collaboration, multi-machine collaboration, etc.;
5、Wide Application
Widely used in food, pharmaceutical, 3C, daily chemical, agricultural chemical and other industries;

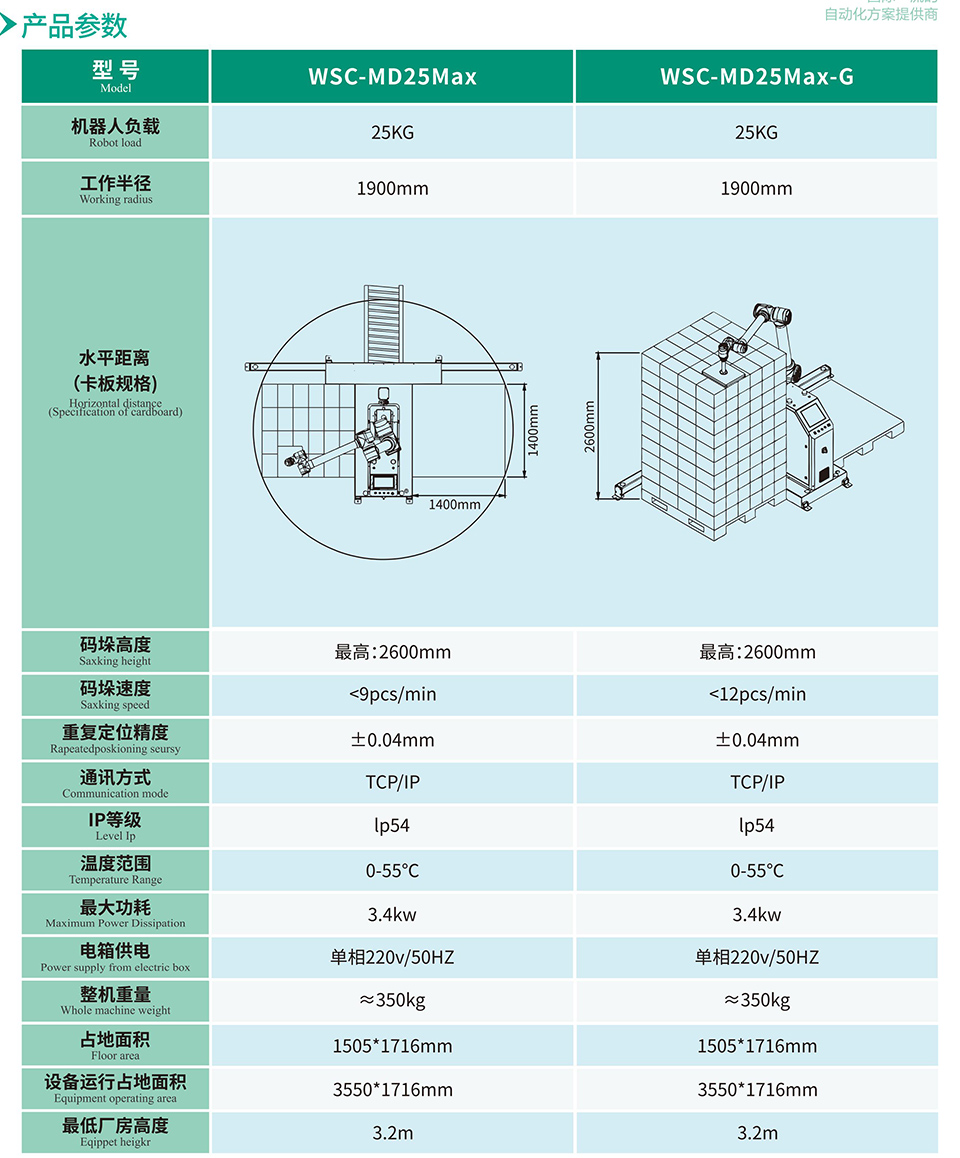

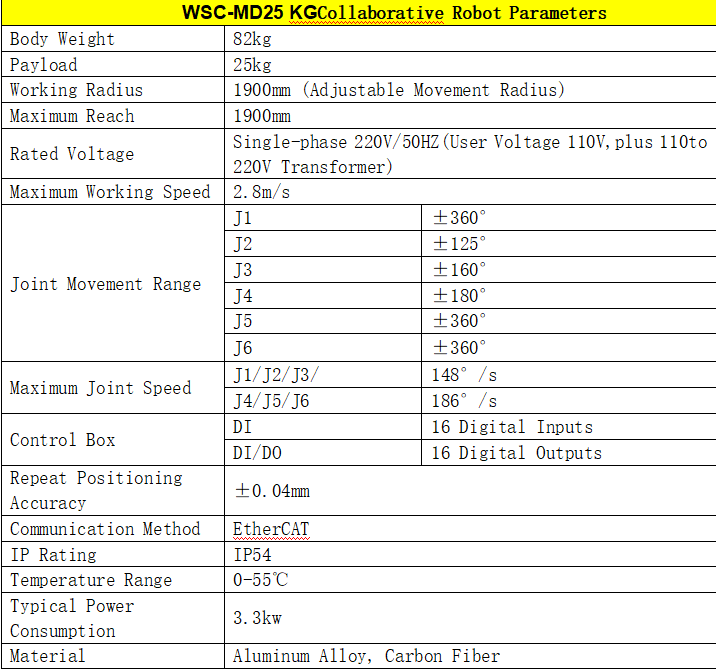

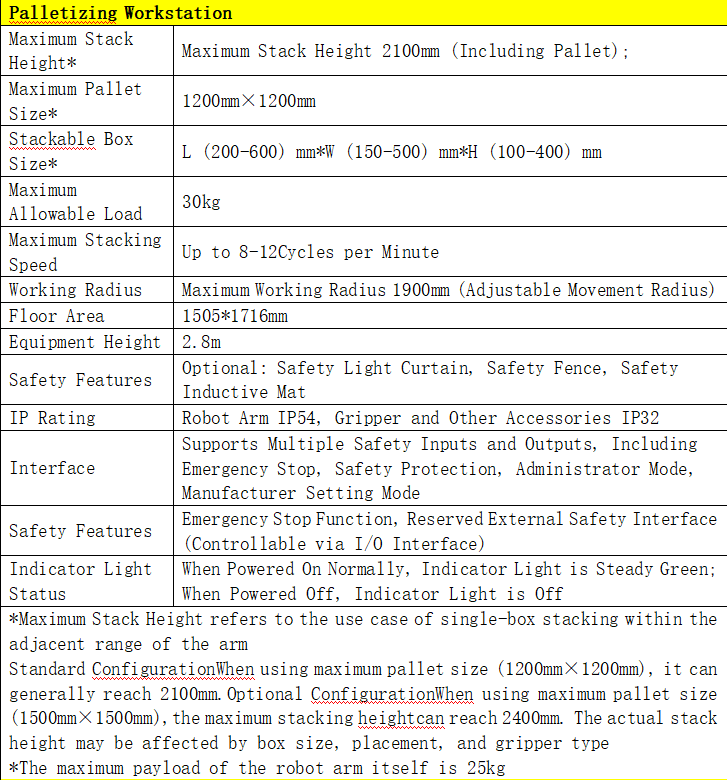

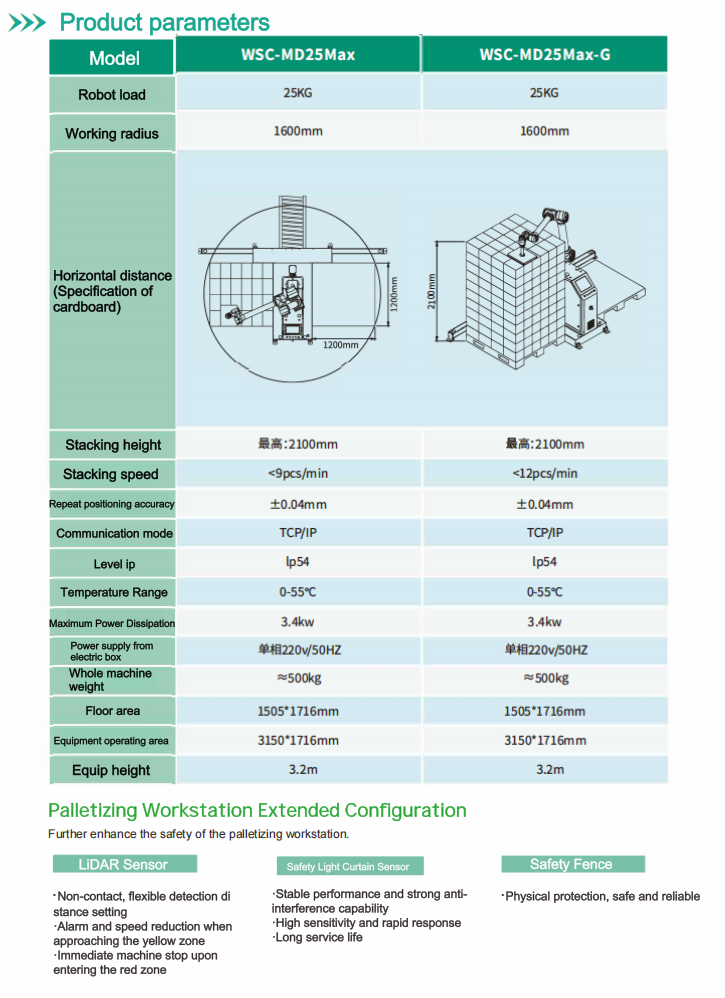

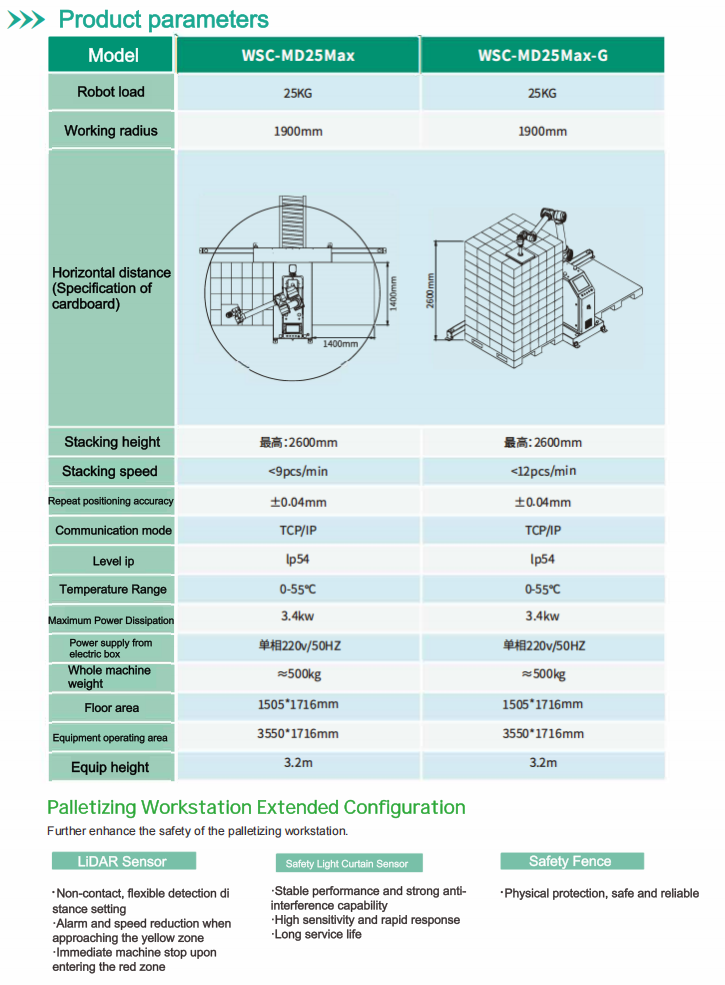

三、Specifications and Parameters
