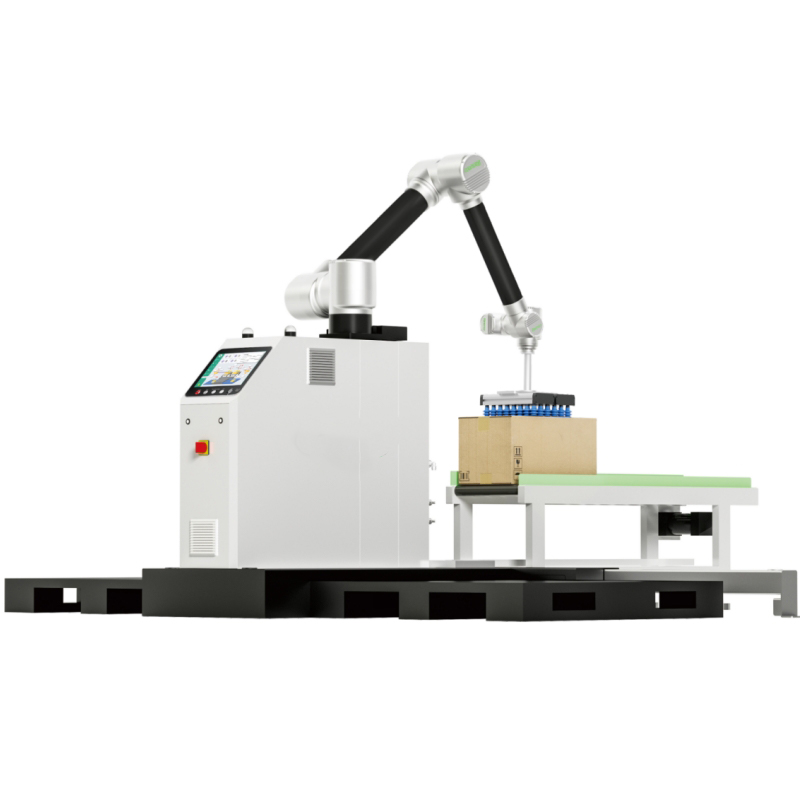

Max Series Collaborative Robot Palletizer WSC-MD50Max

Max Series Collaborative Robot Palletizer WSC-MD50Max

GET A QUOTE

WSC-MD50Max

1、Composition of Workstation

① Collaborative Robot

② Electrical Cabinet Control System

③ Robot Fixed Axis

④ Base + Pallet Positioning

⑤ End Effector

⑥ Operating System

2、Workflow of Workstation

Preparation → Palletizing Mode Setting → Pallet A Placement → Pallet B Placement → Completion

Prev | Next

Description



Product Advantages

1、Safety and Stability

(1) High reliability and safety;

(2) Supports level 10 collision detection and sensor safety detection;

(3) Provides 16 safety I/O interfaces, and will not lose safety functions in case of a single failure;

(4) The end effector will not drop when power is off, ensuring product safety;

2、Flexible Deployment

(1) Integrated design, lightweight and flexible, small footprint;

(2) Setting up new tasks for the workstation is simple and fast, with high efficiency;

3、Easy Programming

(1) Programming method can be mastered in half an hour, and simple programming can be completed in one hour;

(2) Visual programming is simple and efficient, allowing easy operation of the robot without mastering programming languages;

4、Flexible Production

Quick switching between multiple functional scenarios, flexible production can be achieved through human-machine collaboration,

dual-machine collaboration, multi-machine collaboration, etc.;

5、Wide Application

Widely used in food, pharmaceutical, 3C, daily chemical, agricultural chemical and other industries;
